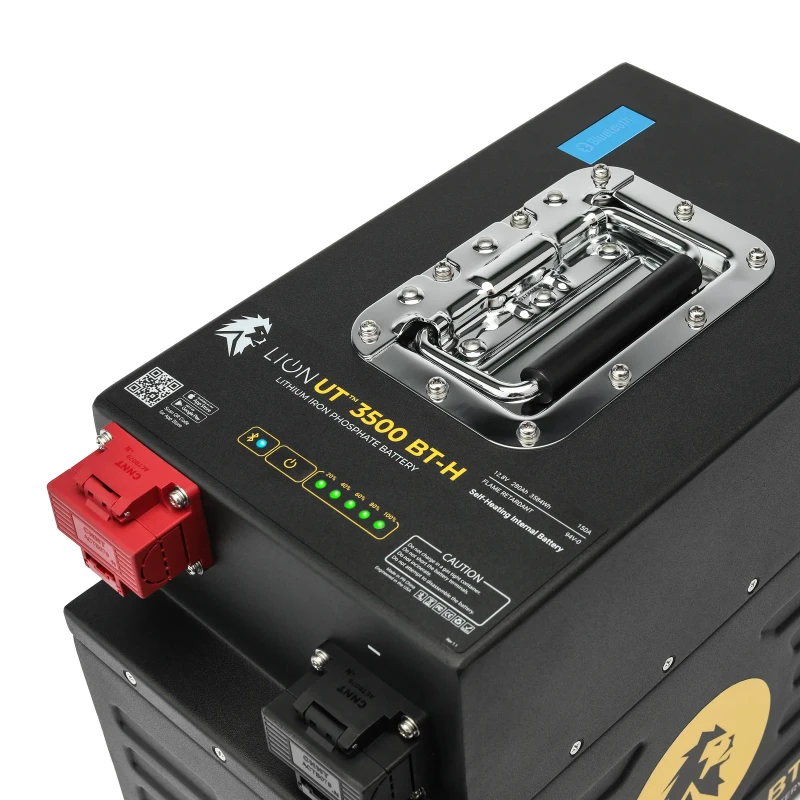

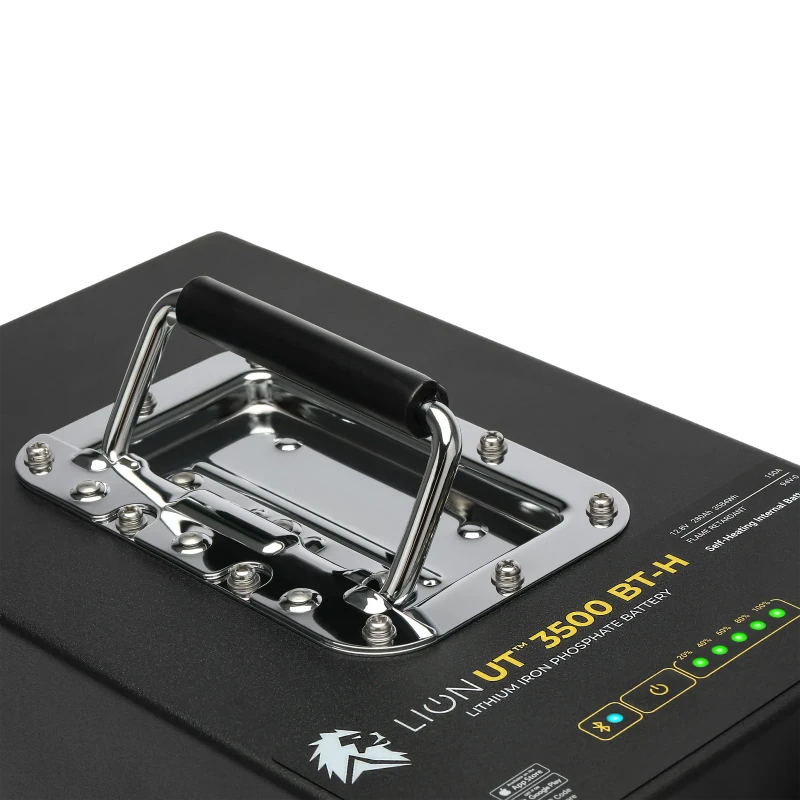

UT 3500 BT-H

UT 3500 BT-H

$1,499.00

50170186

• The new UT 3500 BT-H delivers nearly 3X the power of a standard UT 1300 BT-H,
• with 280Ah of long-lasting LiFePO4 lithium cells built to last a lifetime.
• It offers 24% lower cost per amp-hour compared to three UT 1300 batteries,
• features a built-in heater for optimal performance,
• and fits in a compact footprint at 72.31 lbs.

NOTICE: This product requires extra freight shipping costs and must be bought separately from other Lion Energy Products. Please see the checkout screen for more pricing information.

Out of stock

Product Specifications

Weight & Dimensions

Weight

72.31 lbs.

Dimensions

13.85″ × 7.64″ × 12.85″ (L × W × H).

Battery & Capacity

Battery Chemistry

Lithium Iron Phosphate (LiFePO₄).

Rated Capacity

280Ah / 12.8V nominal (3,584Wh).

Minimum Capacity

≥266Ah, ≤2mΩ internal resistance.

Continuous Discharge

150A continuous / 280A peak (50 sec).

Low Voltage Cut-Off

10.5V safety shutoff.

Lighting & Indicators

LED Indicators

1–5 LEDs show charge from 10% to 100%.

Reset Instructions

Quick press resets low voltage. Press/hold 4–5 sec resets short circuit or high temp.

Bluetooth® App

Monitor battery status via myapp.lionenergy.com.

Configuration

Supports series, parallel, or series-parallel up to 48V. Use 3/8″ eyelets.

Charging Specifications

Recommended Charging

Standard: 45A / Max: 140A / Max Voltage: 14.6V.

Operating Temperatures

Charging: 32–113°F / Discharge: −4–131°F.

Storage Temperature

14–95°F (45–85% RH).

Internal Heater

Auto-heats below 32°F and turns off at 41°F.

Certifications & Warranty

Certifications

FCC, UL 1642, RoHS, CE.

Warranty

Limited lifetime warranty.
